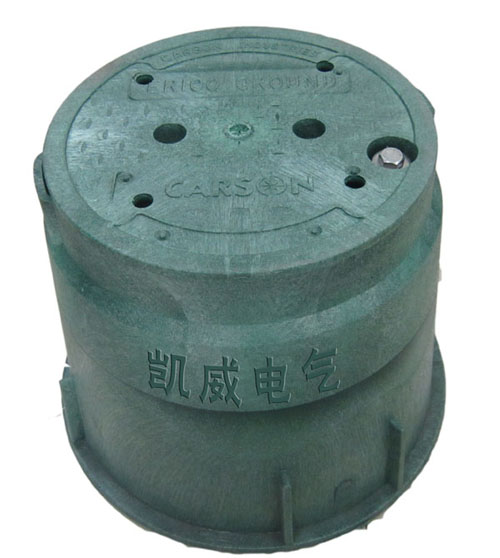

T416BH Inspection Housing, High Density Polyethylene (HDPE)

来源: Inspection Housing T416BH 发布时间: 2014-11-18 11:29:42

Inspection Housing  T416BH
Features
1、Pedestrian load rating
2、Suitable for lighter load rating applications in turf
3、Chemical, UV and corrosion resistant
4、SIZE:3/8" x 1 3/4" (44 mm) stainless steel lock bolt included
5、Boxes and covers nest in 3 1/4" (83 mm) increments
6、Two 3 1/2" x 1 1/2" (89 x 38 mm) knockouts per box
7、T416BH includes four additional holes in the cover to allow water to enter the inspection well, typically for use with chemical ground rods.
Product Specifications

Part Number

T416BH

Material

High Density Polyethylene (HDPE)

Color

Green

Load Rating

0.15 kg/cm2

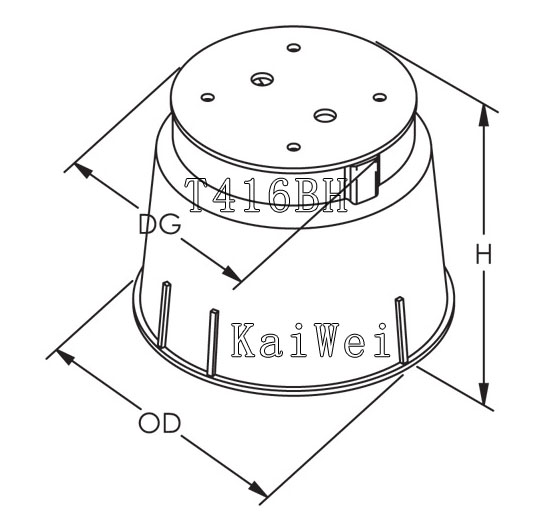

Diameter, Grade Level (DG)

260 mm

Outer Diameter (OD)

333 mm

Height (H)

254 mm

Unit Weight

2 kg

Standard  Packaging Quantity

1 pc

UPC

78285675058

UNSPSC

39121613

ETIM

EC002874
